EcoFlow Alternator Charger 800W
Pickup available at Drone Works Ireland
Usually ready in 24 hours
Description
Shipping
What's In The Box
Drone Works
Product details

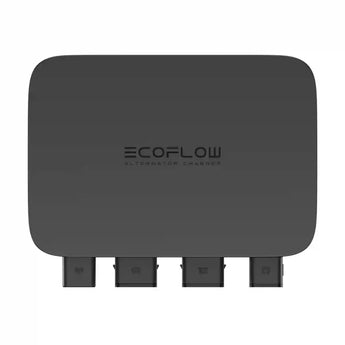

The EcoFlow 800W Alternator Charger
The EcoFlow Alternator Charger features up to 800W of charging power on the move, capable of charging 1kWh in 75 minutes.
A vehicles alternator produces excess power during operation and the EcoFlow Alternator Charger uses this extra power through its onboard DC-DC boost converter to efficiently charge EcoFlow Portable Power Stations.
- Charge 1kWh in only 1.3 hours while you drive
- A 3-in-1 fast charger, maintainer, and jump starter
- Expands existing RV battery capacity
- Safety-assured for any journey
- Clean, easy install
- Suitable for versatile vehicles (SUVs, Pickups, RVs)
What’s in the box: 1. EcoFlow Alternator Charger, 2. Input Cable (5m), 3. XT150 Output Cable (1m), 4. Fuse Cable, 5. Installation Board, 6. (3 x M5*12, 2 x ST5.5*25, 2 x M5*40, 2 x M6*20, 2 x M6 Nut), 7. Cable Puller, 8. User Manual and Warranty Card.
| Product | EcoFlow Alternator Charger 800W |
| Size | 24.2 (L) x 19.4 (W) x 35 cm (H) |
| Weight | 2.3 Kg |
| Charging Mode Input | 11V – 35V, 76A Max |
| Charging Mode Output | 40V – 60V, 800W Max |
| Battery Maintenance Mode Input | 40V-60V, 3A Max |
| Battery Maintenance Mode Output | 13.8V/27.6V, 100W Max |
| Reverse Charge Mode Input | 40V-60V, 21A Max |
| Reverse Charge Mode Output | 13.8V-27.6V, 800W Max |
| Rated Current of Fuse | 125A |
| Protection Type | Reverse polarity protection
Overcurrent protection Short circuit protection Overvoltage and undervoltage protection Thermal Resistance Gallium Nitride (GaN) Technology |
| Operating Temperature
Storage Temperature |
–4℉ to 140℉ (–20℃ to 60℃)
–22℉ to 158℉ (–30℃ to 70℃) |
| Operating Humidity
Storage Humidity |
≤95%
≤95% |
| Maximum output power: | <20dBm |
| Warranty | 2 Years |
| Connectivity | Wi-Fi & Bluetooth |
Charge 1kWh in only 1.3 hours while you drive
Charge 8x faster while you drive with our EcoFlow 800W
Alternator Charger and recharge 1kWh in only 1.3 hours.
Time to fully recharge 1kWh (Eg. DELTA 2)
Car Cigarette Lighter Charger
12.6V 10A ~100W – 10 hours
EcoFlow 220W Bifacial Portable Solar Panel x 2
21.8V 13A 440W Max – 2.3 hours
EcoFlow Alternator Charger
40-60V 800W Max – 1.3 hours
Easy Install
Step 1: Fuse to Input Cable
Connect the fuse cable to the input cable on one end.
Step 2: Fuse to Battery
Connect the fuse cable to the vehicle battery on the other end.
Step 3: Black Cable to Chassis
Connect the black cable to the chassis terminal.
Step 4: Thread the Cable
Thread the other end of the input cable through the car body
towards the charger.
Step 5: Input Cable to Charger
Plug the other side of the input cable into the EcoFlow
Alternator Charger.
Step 6: Output Cable to Charger to Power Station
Plug in the output cable from the EcoFlow Alternator Charger
to the portable power station.
Compatible with the following models:
Ecoflow DELTA 2 and DELTA 2 Extra Battery, Ecoflow DELTA 2 Max and DELTA 2 Max Extra Battery, EcoFlow DELTA Pro (Smart Generator Adapter is required for the DELTA Pro) .
Ecoflow DELTA Max 1600 and 2000.
